Port Logistics – Efficient Special Solutions

From overheight frames to lashing baskets – our products are designed for the tough demands of container handling. Reliable, durable, and perfectly adapted to the requirements of modern port operations.

Overheight Frame
SHT Lifting
Fully automatic overheight frame for out-of-gauge containers

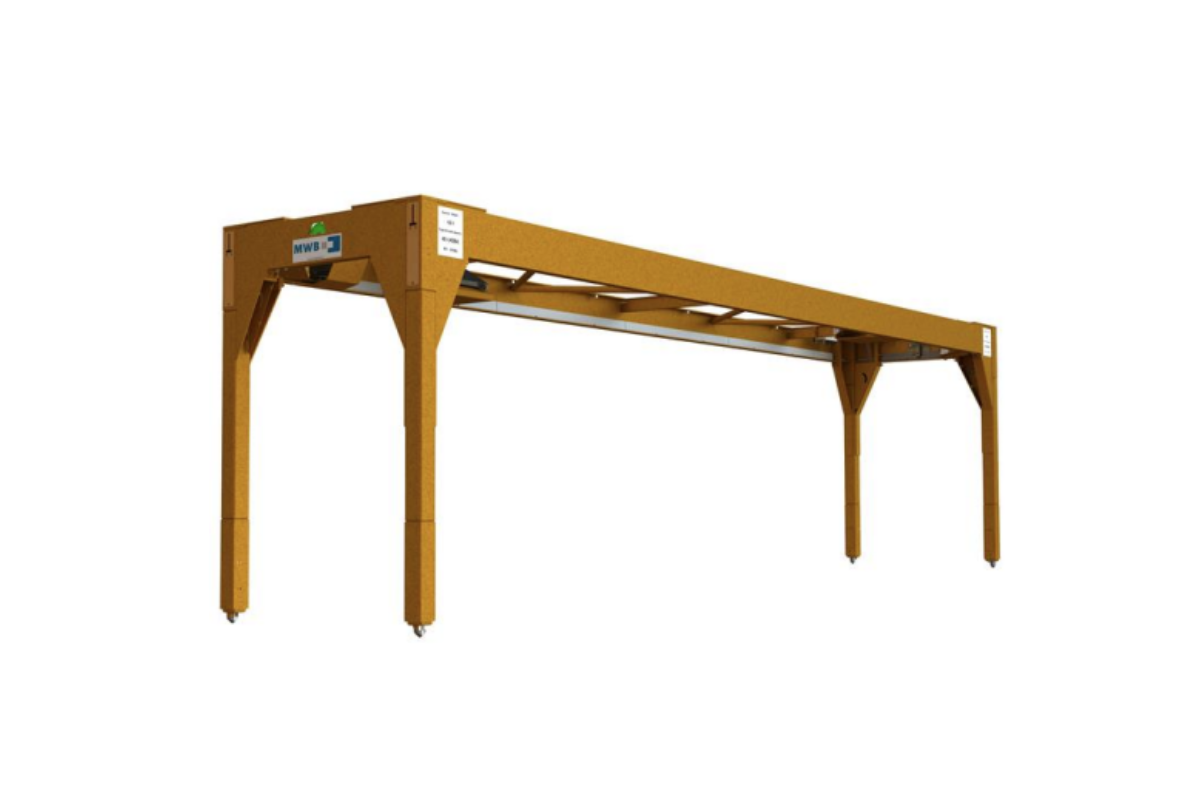

Overheight Frame – OHF

The fully automatic Overheight Frame (OHF) was developed for the safe and efficient handling of oversized or out-of-gauge containers. It is picked up directly by the spreader and requires no additional power supply – the complete locking is purely mechanical via the twistlocks of the spreader.

Learn more

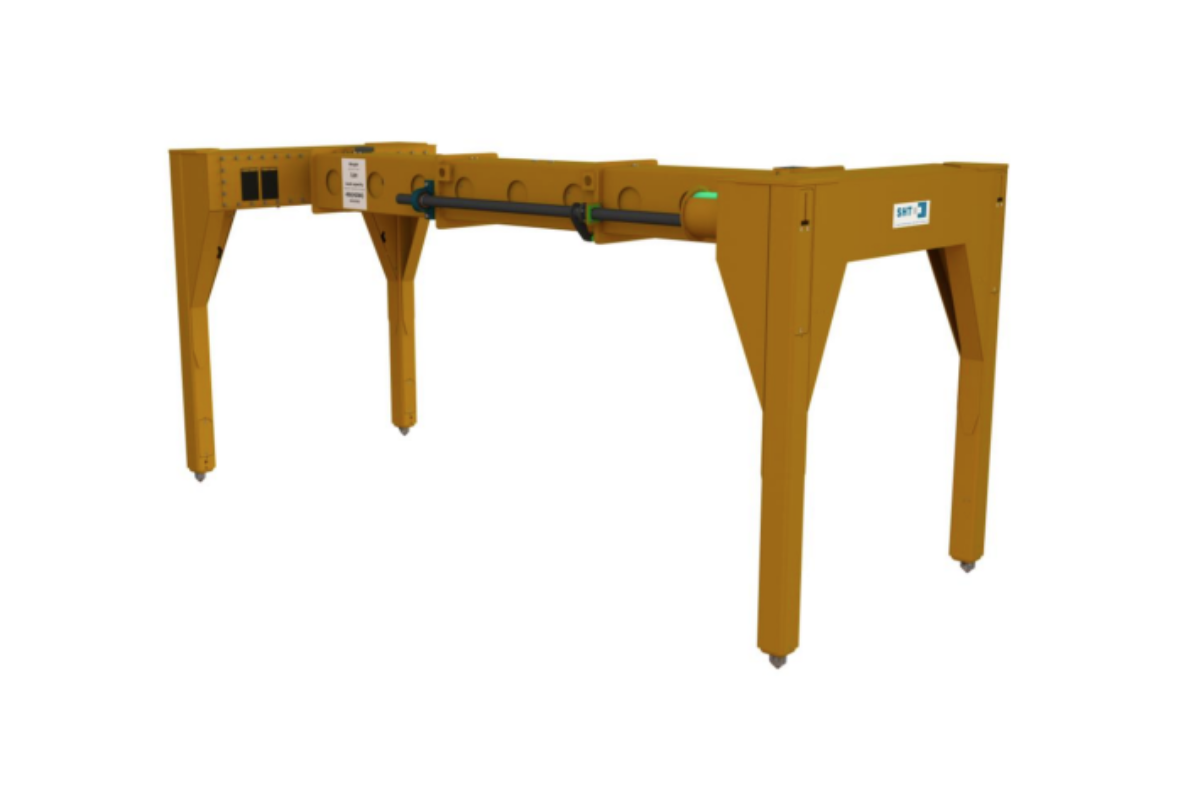

Telescopic Overheight Frame – TOF

The TOF is a fully automatic telescopic overheight frame that can be flexibly set to 20- or 40-foot positions. It enables safe handling of oversized containers without additional power supply or modifications to the spreader.
Thanks to its stable lightweight design and automated locking, the TOF offers maximum payload and top-level operational safety – even with challenging load profiles and changing requirements. The perfect solution for terminals handling out-of-gauge cargo on a daily basis.

Learn more
Telescopic overheight frame for 20- to 40-foot containers
Telescopic lashing cage with side gondolas for container operations

Lashing Cage – Telescopic Personnel Cage (TPC)

The telescopic Lashing Cage TPC allows safe and ergonomic work on two container tiers – without any additional tools. Horizontally extendable up to 45 feet and telescopic vertically, it offers maximum flexibility for opening and closing twistlocks.
Lashers work directly from the side gondolas and communicate with the crane operator via radio. The TPC significantly increases efficiency in the lashing process and meets the highest safety standards – even under tough port conditions.

Learn more

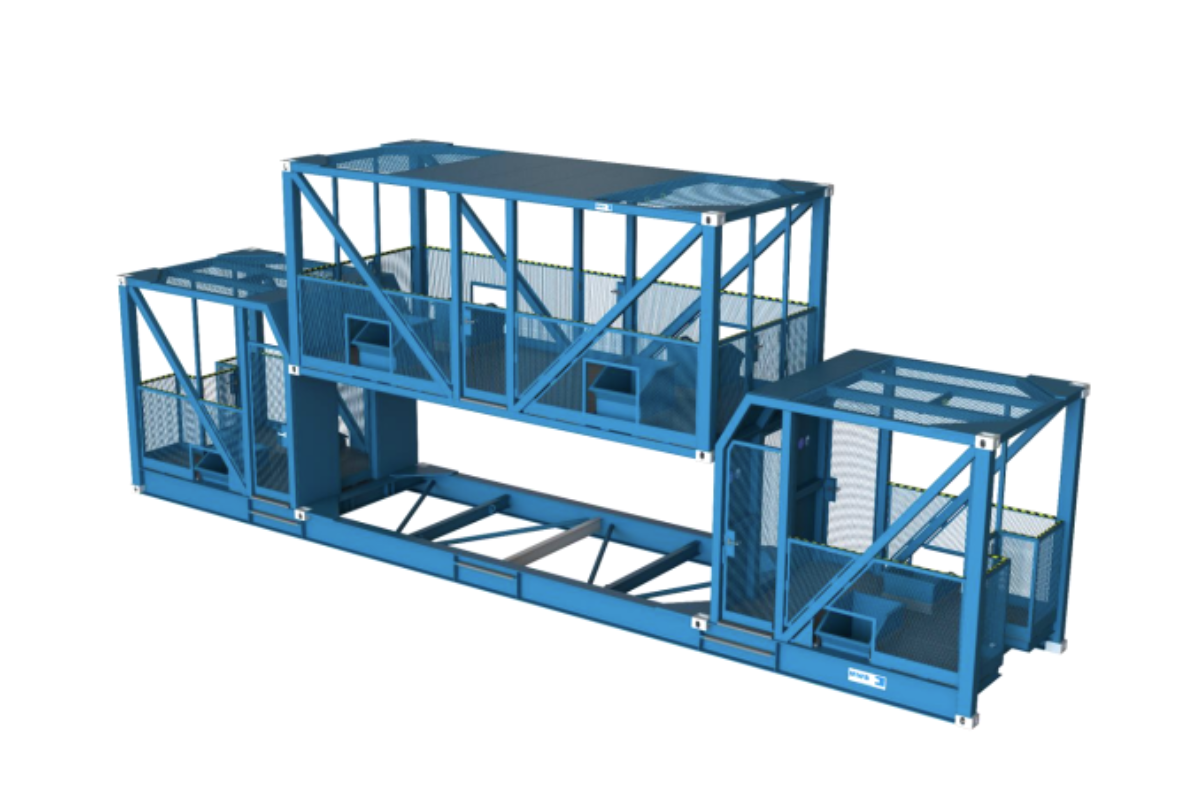

Personnel Lashing Cage – PLC

The modular PLC is specifically designed for safe work on containers. The detachable 20-foot unit can be used individually or together with the 40-foot section – flexible and efficient, even for overheight.
With spacious storage compartments for twistlocks and tools, holders for lashing rods, and all-around accessible doors, the PLC provides optimal working conditions. Ideal for maintenance, lashing tasks, and inspections on container ships – robust, roomy, and proven in practice.

Learn more
Modular personnel cage with 20- and 40-foot units for lashing work
Telescopic safety gondola with fully enclosed work area

Personnel Safety Cage – PSC

The PSC provides a fully enclosed working platform for maximum safety during lashing operations. With horizontal telescoping up to 45 feet and a robust design, the PSC is ideal for use on container stacks – without any additional tools.
Operated via the master spreader and communicating by radio, the PSC is flexible, easy to handle, and requires little storage space in everyday port operations.

Learn more

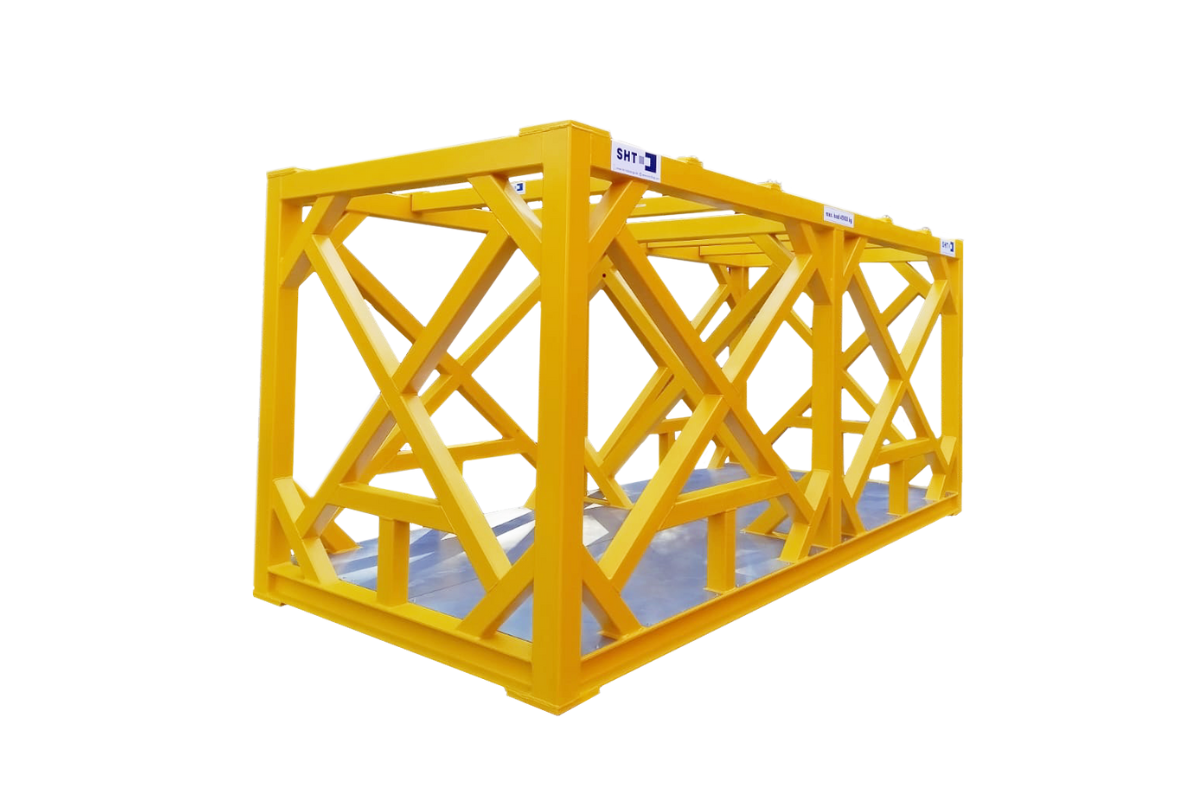

Test Weight Frame

The heavy-duty Test Weight Frame allows safe and standard-compliant testing of cranes, spreaders, and lifting devices. Equipped with ISO corners, it can be picked up directly by a standard spreader – without any additional structures.
The robust steel construction is designed for test loads up to 45 t (centered) and offers a walkable loading area for flexible loading with test weights. CE-certified, corrosion-protected, and ready for immediate use – a reliable test system for all types of lifting equipment.

Learn more
Heavy-duty test frame with ISO corners for crane and spreader load testing

Strong Solutions for Port Logistics – Experience Meets Innovation

SHT Suhler Hebezeugtechnik GmbH offers proven and robust systems for modern port logistics. Whether overheight frames, lashing cages, personnel cages, safety gondolas, or test weight frames – our products are designed for maximum durability, easy handling, and the highest level of safety.

With the integration of the product range of M.W.B. GmbH, SHT has strategically expanded its portfolio. Many of these solutions have already been manufactured by SHT for decades – now we combine our expertise under one roof. The Suhl site will take over the management of all areas in the future, including spare parts supply and technical consulting.

Benefit from our proven inspection service for lashing equipment and special lifting devices, as well as from personal support provided by experienced specialists. Our service department assists you with recurring inspections and technical questions – reliable, qualified, and flexible.

As a traditional company with solid experience in crane construction, intralogistics, and lifting gear, we understand the requirements of the port industry down to the smallest detail – and deliver solutions that are precisely tailored to them.

Contact Us

SHT Suhler Hebezeugtechnik GmbH
Email: info@sht-hebezeuge.de
Phone: +49 (0) 3681 / 45 89 0

Find more information here:

Overheight Frame
SHT Lifting

Frequently Asked Questions (FAQ) about Port Logistics

SHT offers fully automatic overheight frames (OHF, TOF), lashing cages (TPC, PLC), safety gondolas (PSC), and test weight frames – robust, proven in practice, and designed for maximum safety in port operations.

SHT has taken over the operational business of M.W.B. GmbH. Many of the products have already been manufactured by SHT for years – now development, production, and service are all centralized at our Suhl site.

Yes – our service department performs recurring annual inspections in accordance with applicable regulations and provides the necessary certification for your lifting devices.

Yes – all devices are equipped with ISO corners and are fully compatible with standard container spreaders. No modifications or external power sources are required.

For each product, we provide a data sheet available for download. You can find it directly on this page below the respective product description.
